PK-4Exi junction box
The PK-4Exi junction box is used for piercing cables of self-contained circuits inside explosive atmospheres. It is a simple device.

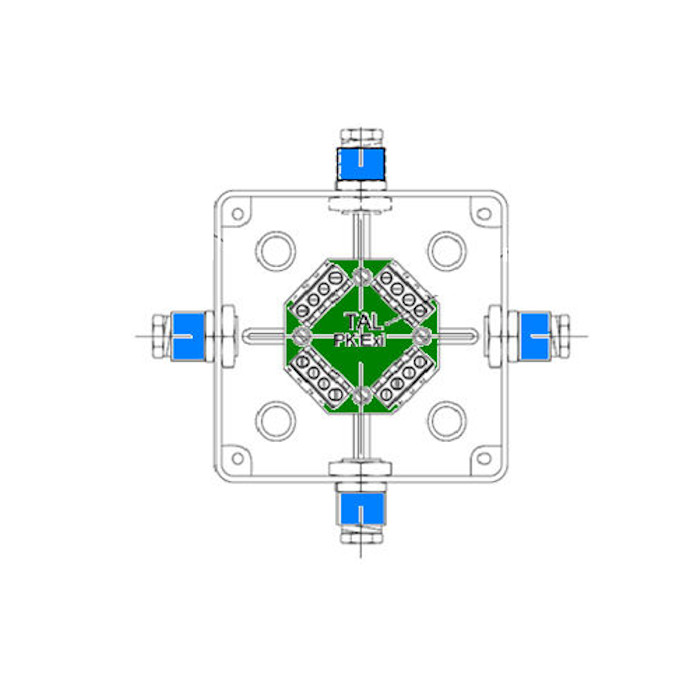

It consists of a printed circuit board with regular terminals, embedded in a plastic or aluminum box with grommets. The number of grommets ranges from 1 to 4 and the type from PG9 to PG13,5.
When using a silicon box, grounding is required with water of min 4 mm²
|
Nominal voltage |
9 V DC |
|
Nominal current |
100 mA |
|
Permissible operating ambient temperature |
T6 / T3 → Tamb = -20 do +60⁰ C |
|
Scope of overhead - industry and a group of gases and vapors or dust |
IIC (gases and vapors) |
|
Capacity and inductance by line |
Negligble |
|
Ex protection |
II 2G Ex ib IIC T6/T3 Gb II 2D Ex ib IIIC T135° C Db |
|
IP protection |
IP24 |
|
Color |
Gray RAL 9018 |
|
Weight |
170 g. |
