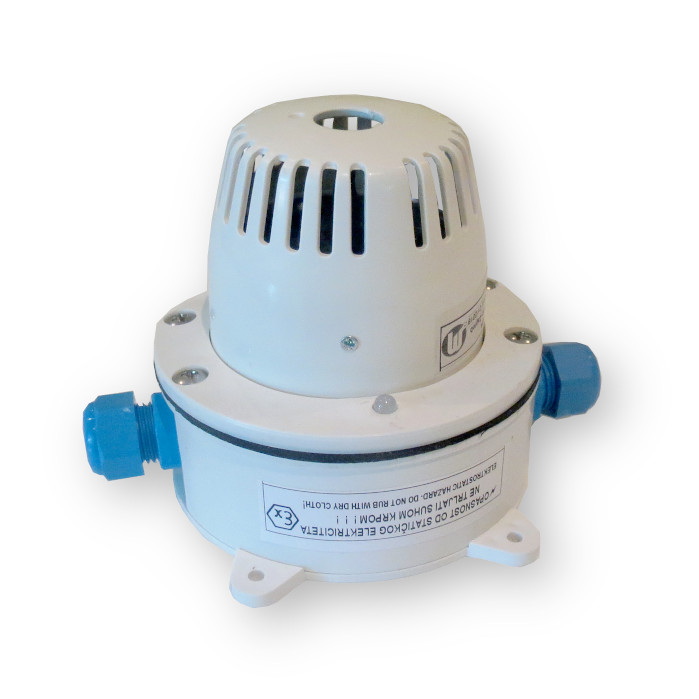

Exi Heat fire detector
In the event of a fire, the thermal fire alarm responds to the set threshold or rapid temperature rise. In the event of a fire, an increased current flows through the detector, thus informing the fire control panel of the occurrence of a fire. We produce several types of thermal detectors, namely:
TD-811Exi (thermal differential) responds to rapid temperature rise or maximum temperature of 55 ° C
TD-812Exi (thermal differential) responds to a rapid temperature rise or a maximum temperature of 64 ° C
TMD-811Exi (thermo maximum) only responds to a temperature of 55 ° C
TMD-812Exi (thermo maximum) only responds to a temperature of 64 ° C
It comes in two version:
With one gland - a end base
With tvo glands - a passing base
|
Rated power supply voltage |
12 V DC do 25,2 V DC |
|
Maximum Alarm Current Allowed |
40 mA |
|
Electricity at rest |
≤30 μA |
|
Permissible operating ambient temperature for |
T6 → Tamb = -20 do +65⁰ C T4 → Tamb = -20 do +100⁰ C Tshorttime = +140⁰ C |
|
Scope of overhead - industry and a group of gases and vapors or dust |
IIC (gases and vapors) |
|
Connection to Fire Alarm Central exclusively via device |
SSU-24ExEi |
|
Capacity and inductance by line |
It does not affect Lo and Co |
|
Ex protection mark |
II 2G Ex ib IIC T6/T4 Gb |
|
IP protection at the base of the P-802Exi i P-802/1Exi |
IP54 |
|
Color |
White |
|
Weight |
240 g. |
