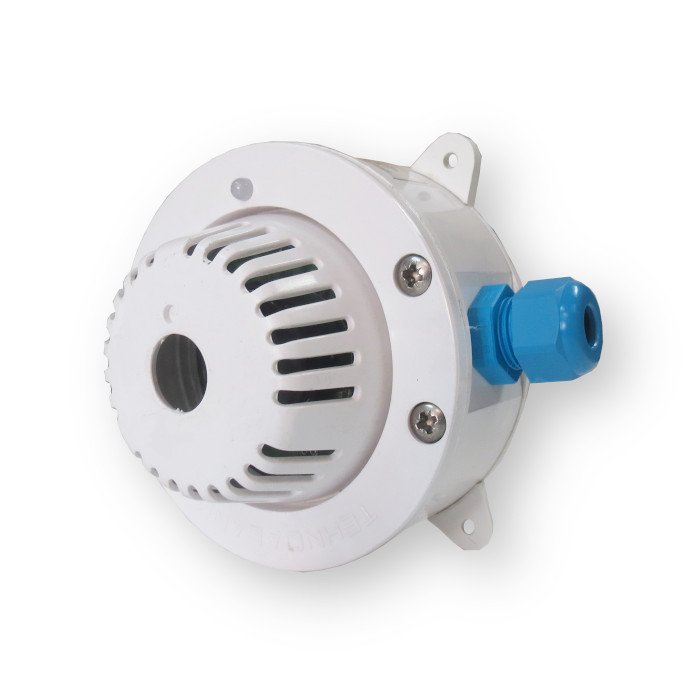

Exi Alarm Sounder
Exi Sound signaling for fires in explosive atmospheres (Zones 1 and 2). After the automatic activation of some of the detectors (manual, thermal, optical), acoustic signaling is also activated as additional signaling.
Beeper (gas and vapor only) ZS-80Exi - permanent or intermittent audible alarm
|
Rated power supply voltage |
13 V DC |
|
Nominal current |
25 mA |
|
Number of signals per channel Forbidden parallel connection of channels ! |
1 |
|
Permissible operating ambient temperature via SSU-24ExEi-ZS |
T5 → Tamb = -20 do +60⁰ C |
|
Scope of overhead - industry and a group of gases and vapors or dust |
IIC (gases and vapors) |
|
Connection to Fire Alarm Central exclusively via device |
SSU-24Ex-ZS or SSU-24Ex-Ei |
|
Capacity and inductance by line |
Negligble |
|
Ex protection mark for LB-80Exi Zone 1/2 |
II 2G Ex ib IIC T5 Gb |
|
IP protection |
IP24 |
|
Color |
White |
|
Weight |
250 g. |
