Exi Industrial firebox stand
The base of the detector is an integral element of a set of automatic fire detectors that is mechanically mounted on the substrate (usually the ceiling) in the space being protected.
The base of the detector has built-in contacts (3 contacts with elastic pen). Turning clockwise connects the measuring head mechanically and electrically to the base of the detector. This connection is easily detachable due to the need to replace or clean the detector head. Unscrewing the 4 screws removes the base cover with the gasket and provides access to the printed circuit board and the regular clamps for connecting the lines.
The maximum cross section of the copper conductor is 1.5 mm².
PG9 bushings are fitted as standard, but bushings up to PG13.5 can be ordered.
The base does not require maintenance after proper installation .
Detector footer versions are :

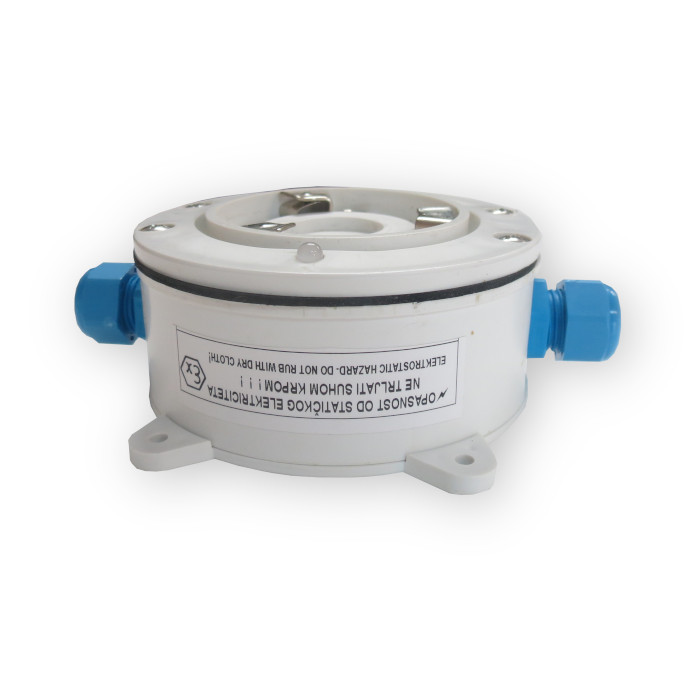

P-802Exi - a passage base with 2 glands

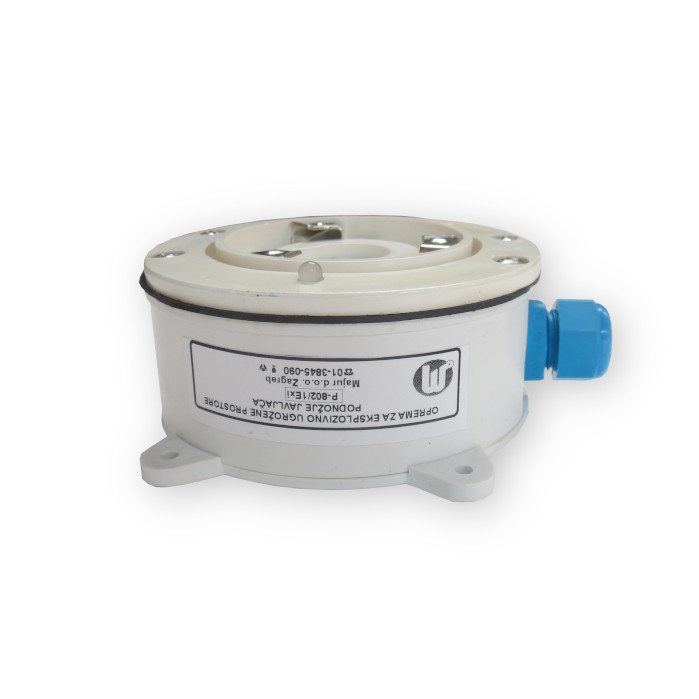

P-802/1Exi –end base with 1 gland
