Exi Optical smoke detectors
An optical smoke detector detects the occurrence of an early-stage fire by measuring the density of the smoke. In the event of an alarming smoke density, an increased current flows through the detector and thus reports the fire to the fire alarm panel.
The optical detector is intended for long-term use because of its robustness and the ability to clean the light chamber in the detector.
It comes in two version:
With one gland - a end base

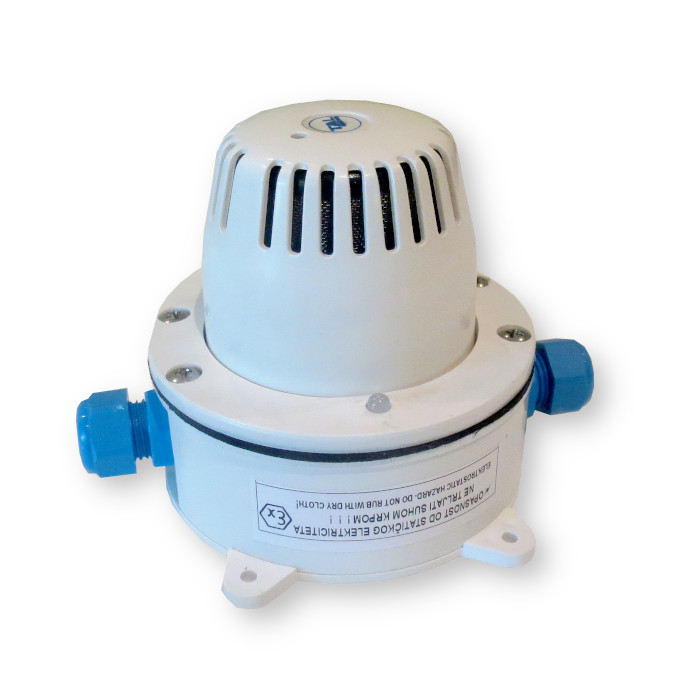

With tvo glands - a passing base
|
Rated power supply voltage |
12 V DC do 25,2 V DC |
|
Maximum Alarm Current Allowed |
45 mA |
|
Electricity at rest |
≤30 μA (max. 70 μA) |
|
Permissible operating ambient temperature for |
T6 → Tamb = -20 do +65⁰ C |
|
Scope of overhead - industry and a group of gases and vapors or dust |
IIC (gases and vapors) |
|
Connection to Fire Alarm Central exclusively via device |
SSU-24ExEi |
|
Capacity and inductance by line |
It does not affect Lo and Co |
|
Ex protection mark |
II 2G Ex ib IIC T6/T4 Gb |
|
IP protection at the base of the P-802Exi i P-802/1Exi |
IP24 |
|
Color |
White |
|
Weight |
300 g. |
