Exi Fire Manual call point
The RD81 Exi manual detector is intended for manual fire detection in areas with a potentially explosive atmosphere (ZONES 1 and 2).
This detector can be used with the associated SSU24-ExEi device or with the use of the Zener barrier.
The difference between the RD81-exi and RD82-exi detectors is in the number of introductions.

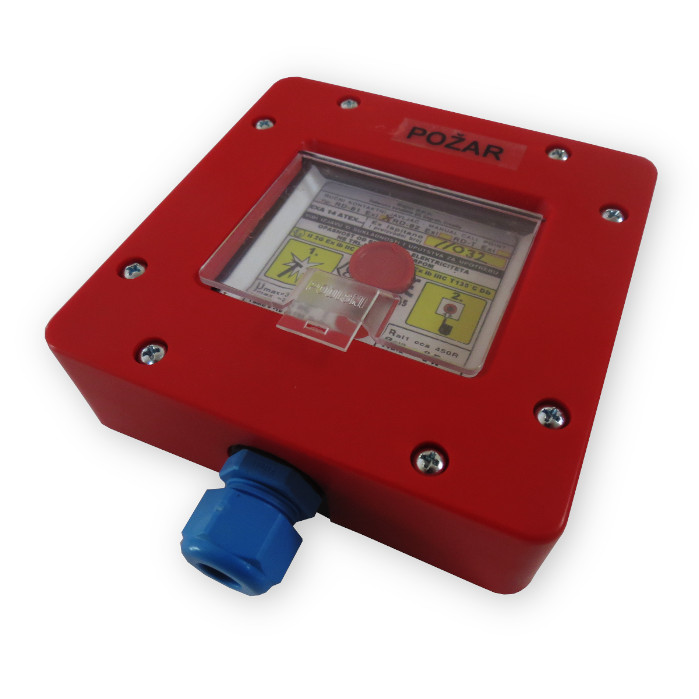

RD81-exi – end base with 1 gland

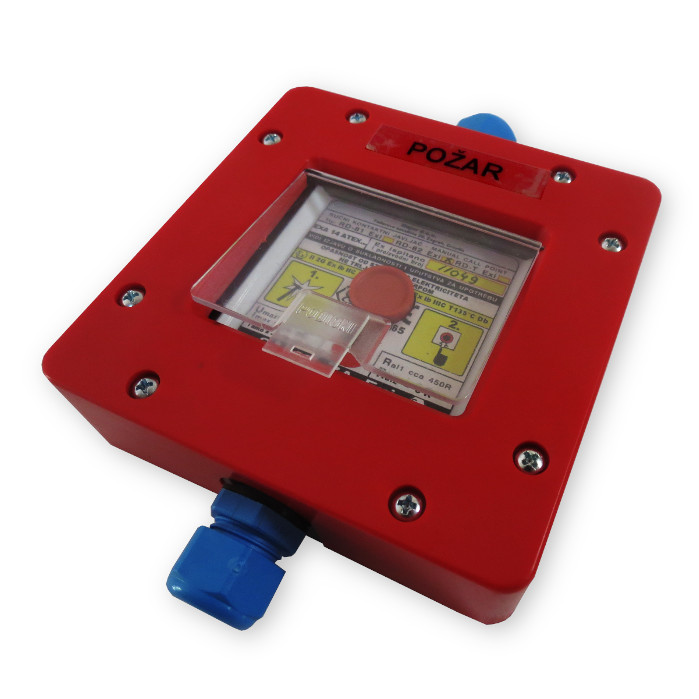

RD82-exi – a passage base with 2 glands
There is also an RD-T Exi pushbutton for physical interruption in explosive atmospheres (ZONES 1 and 2) and comes with one glove (end) or two gates (transient) in color options (red, blue, yellow).
|
Max. voltage, current and power |
25,8 V DC / 200 mA / 800 mW |
|
Maximum Alarm Current Allowed connection to: L- i L1+ L- i L2+ |
22 mA 200 mA |
|
Steady-state current |
0 μA |
|
Operating ambient temperature allowed - via SSU-24EXEi - over the Zenner barrier (Rs = 220 Ω) |
T6 → Tamb = -20 to +65⁰ C |
|
Područje primjene nadzemlje - industrija i grupa plinova i para ili prašine |
IIC (gases and vapors) |
|
Connection to Fire Alarm Central exclusively via device |
SSU-24ExEi |
|
Capacity and inductance by line |
Negligble |
|
Ex protection marking Zone 1/2 and Zone 21/22 |
II 2G Ex ib IIC T6 Gb |
|
IP protection |
IP54 |
|
Color |
Red |
|
Weight |
300 g. |
|
Regular terminals 3 pcs; blue 3 x 1 in parallel |
Cable up to 1,5 mm |
